Battery Bank Wiring Diagram (12V, 24V, and 48V)

Hi, in this article, we are going to see 12V Battery Bank Wiring Diagram, 24V Battery Bank Wiring Diagram, and 48V Battery Bank Wiring Diagram. These wiring diagrams clearly show how batteries should be connected, either in series, parallel, or a combination of both.

Series Connection increases voltage while keeping the same capacity (Ah) and the Parallel Connection increases capacity (Ah) while keeping the voltage the same. To achieve the desired voltage and capacity of the battery bank proper wiring is very important.

These wiring diagrams also give you an idea of proper cable sizing for the current to be carried. While doing battery bank connections proper cable sizing is very important. Proper wiring minimizes voltage drops and power losses which can enhance the efficiency of the overall system.

12V Battery Bank Wiring Diagram

Here, you can see the wiring diagram for a 12V Battery Bank which is built with 12V, 100AH batteries and provides an output of 12KWH.

As you can see here, a total of 10 batteries are used. As the output voltage of the battery bank and the voltage of the individual batteries are the same here no need of series connection. Here, all the batteries are connected in parallel.

You can see all the batteries are connected in parallel using Busbars. using of busbar ensures that all batteries share the load equally by providing a common connection point with minimal resistance. When batteries are directly connected in parallel without a busbar, the cables from each battery to the load can have different resistances due to varying cable lengths, thicknesses, or connections. This can result in unequal current distribution, causing some batteries to carry more load than others.

24V Battery Bank Wiring Diagram

Here, you can see the wiring diagram for a 24V Battery Bank which is also built with 12V, 100AH batteries and provides an output of 12KWH.

Here, you can see, as the output voltage of the battery bank is double of the individual battery voltage so here two batteries are connected in series to achieve the desired output voltage and then multiple series strings are connected in parallel to achieve the desired output current.

48V Battery Bank Wiring Diagram

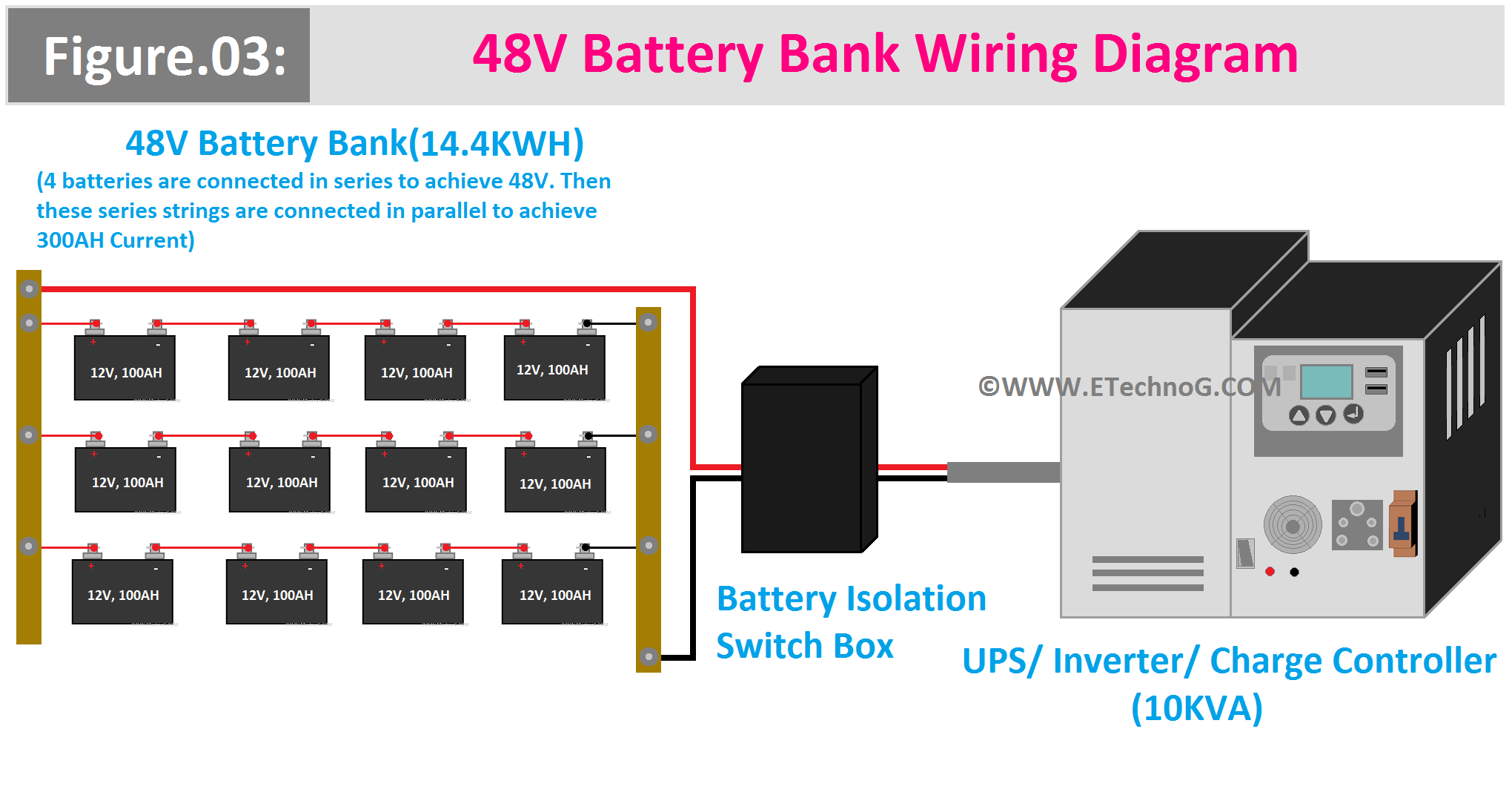

Here, you can see the wiring diagram for a 48V Battery Bank which is also built with 12V, 100AH batteries and provides an output of 14.4KWH.

Here, you can see, as the output voltage of the battery bank is Quadruple of the individual battery voltage so here four batteries are connected in series to achieve the desired output voltage and then multiple series strings are connected in parallel to achieve the desired output current.

Proper Battery Bank Connection Procedure

There are four methods for proper Battery bank Connections. Each of these are explained below,

1. Busbar Method

In this method, all the positive terminals of the batteries are connected to a positive busbar and all negative terminals are connected to a negative busbar. Then the load or inverter is connected to the busbars.

In this method, current is equally distributed among all the batteries. Here, we can easily add or remove batteries.

2. Common Terminal Method

In this method, all the positive terminals of the batteries are connected to a single positive post (or terminal), and all the negative terminals are connected to a single negative post. Then the load or inverter is connected to these common points.

It is very simple to implement and reduces the number of wires running to the load or inverter.

3. Halfway Connection Method

In this method, the total number of batteries is divided into two separate parallel connections and then the load or inverter connections are placed at the midpoint of the battery bank, balancing the current flow.

For example, a bank of 4 batteries, each of two batteries are connected in parallel separately and then the load is connected between batteries 2 and 3.

This method reduces imbalance compared to the common terminal method. But it is still not perfect for larger systems as slight imbalances can remain.

4. Diagonal Connection Method

In this method, the positive connection for the load is made at the positive terminal of the first battery and the negative connection is made at the negative terminal of the last battery.

This method provides excellent current balance across all batteries and maximizes battery lifespan by equalizing charge and discharge rates. But it is still not perfect as there may still be slight differences in the individual battery currents.
